Description

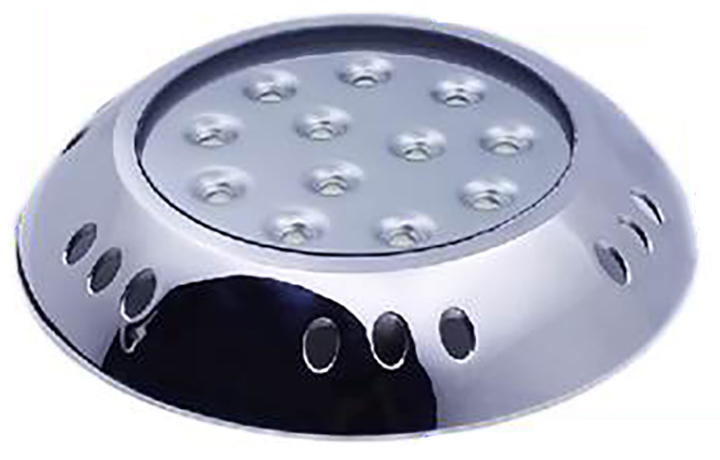

The OPT High-Powered LED Lighting System complements OPT's ultra-high-definition underwater cameras. Each OPT-HPL lighting module emits 60 watts of white light covering 90 degrees in both horizontal and vertical directions. The highly compact modules can be daisy-chained to cover a wider area, with the system supporting up to four modules over a single underwater power cable. Wet-mateable connectors allow lights to connect directly to cameras on some models, eliminating additional cabling to the surface. Each LED module features a 316 marine-grade stainless steel housing with tempered glass lenses, rated to 180 feet (55 meters) or more. Designed with overheating and reverse connection protection, operating within a wide 10 to 30 VDC range for longer cable installations and battery operation. Coated with a special anti-biofouling protective film that maximizes long-term underwater performance.
SKU
OPT-HPL
Specifications
Power Output: 60 watts white light per module
Coverage: 90 degrees horizontal and vertical per module
Max Modules: Up to 4 daisy-chained per cable
Housing: 316 marine-grade stainless steel
Lens: Tempered glass
Depth Rating: 180 feet (55 meters) or more
Voltage Range: 10 to 30 VDC
Protection: Overheating and reverse connection protection
Connector: Wet-mateable, direct camera connection on select models
Coating: Anti-biofouling protective film, eco-friendly foul-release
Product Life: More than 50,000 hours
Coverage: 90 degrees horizontal and vertical per module
Max Modules: Up to 4 daisy-chained per cable
Housing: 316 marine-grade stainless steel
Lens: Tempered glass
Depth Rating: 180 feet (55 meters) or more
Voltage Range: 10 to 30 VDC
Protection: Overheating and reverse connection protection
Connector: Wet-mateable, direct camera connection on select models
Coating: Anti-biofouling protective film, eco-friendly foul-release
Product Life: More than 50,000 hours
